Choose and Operate a Learning Record Store Connection - Article
Summary
An LRS is useful when you need xAPI-based content support, detailed learning statements or evidence combined across systems. Most ordinary Eurekos reporting does not require an external LRS.
Choose the storage and reporting route according to your content and analysis requirements. Light LRS and an external LRS have materially different operational limits.
Use this article to:
- Decide whether the use case requires an LRS
- Understand Light LRS capacity and external migration
- Configure and verify the intended external statement flow
Business Context
Eurekos includes comprehensive built-in tracking and reporting capabilities that meet the needs of most organizations. In many cases, there is no requirement to integrate with an external Learning Record Store (LRS). However, if you want to import xAPI content, such as courses created in a 3rd party authoring tool, an LRS is required to operate appropriately with data.
Organizations may require:
- Cross-platform learning tracking
- Integration with external learning ecosystems
- Custom learning analytics beyond standard LMS reporting
- Support for xAPI-based content and learning experiences
This is where an LRS becomes relevant.
An LRS allows organizations to collect detailed, standardized learning activity data across multiple systems—not just Eurekos—making it possible to track learning beyond the LMS itself.
Typical use cases include:
- Advanced analytics and BI integration
- Tracking learning across multiple platforms
- Using external authoring tools that rely on xAPI
- Capturing granular learning interactions beyond what is supported by Eurekos charts and reports
For learning tools already integrated into Eurekos—such as H5P, which can be created and managed natively—the platform supports access to key interaction data directly within its built-in analytics. This means that, for most use cases, no LRS connection is required to gain meaningful insights.
An LRS integration becomes relevant only in more advanced scenarios, where an organization requires access to a broader or more granular set of data points than what is available within Eurekos. This typically applies when there is a clear business need for full data extraction, cross-system tracking, or custom analytics beyond standard reporting capabilities.
xAPI (Experience API) and Learning Record Store (LRS)
xAPI (Experience API) is a modern standard for tracking learning experiences across systems. Instead of being limited to traditional events such as course completion, xAPI captures learning as structured statements—often described as “Actor – Verb – Object” (for example, “User completed Course A”). This approach enables much more flexible tracking of learning activities, including interactions with content, video engagement, simulations, and learning that happens outside the LMS.
A Learning Record Store (LRS) is the system designed to receive and manage these xAPI statements. It acts as a centralized repository where learning data can be stored, queried, and analyzed independently of the platform where the learning took place. This makes it possible to track learning across multiple systems and environments, supporting more advanced analytics and integration scenarios.
While Eurekos supports xAPI through LRS integration, it is important to note that the standard itself—and how it is implemented—can vary depending on your chosen tools and setup. For this reason, we recommend consulting official xAPI and LRS documentation when designing your tracking strategy:
- https://xapi.com (xAPI overview and specification guidance)
- https://adlnet.gov/projects/xapi/ (official ADL xAPI documentation)
These resources provide deeper guidance on how to structure statements, design learning experiences, and ensure compatibility across systems.
When an LRS Is Required
An LRS integration is typically required when:
- Using xAPI-based content from external tools
- Tracking learning outside Eurekos
- Exporting raw learning data to external systems
- Performing advanced or custom analytics
It is not required for standard Eurekos usage.
Feature Overview
The LRS integration enables Eurekos to communicate with an external LRS using the xAPI standard.
| Capability | Description |
|---|---|
| xAPI statement generation | Eurekos generates learning activity statements |
| Data export | Statements are sent to the LRS |
| External analytics | Data can be analyzed outside Eurekos |
| xAPI content support | Enables tracking of xAPI-based learning materials |

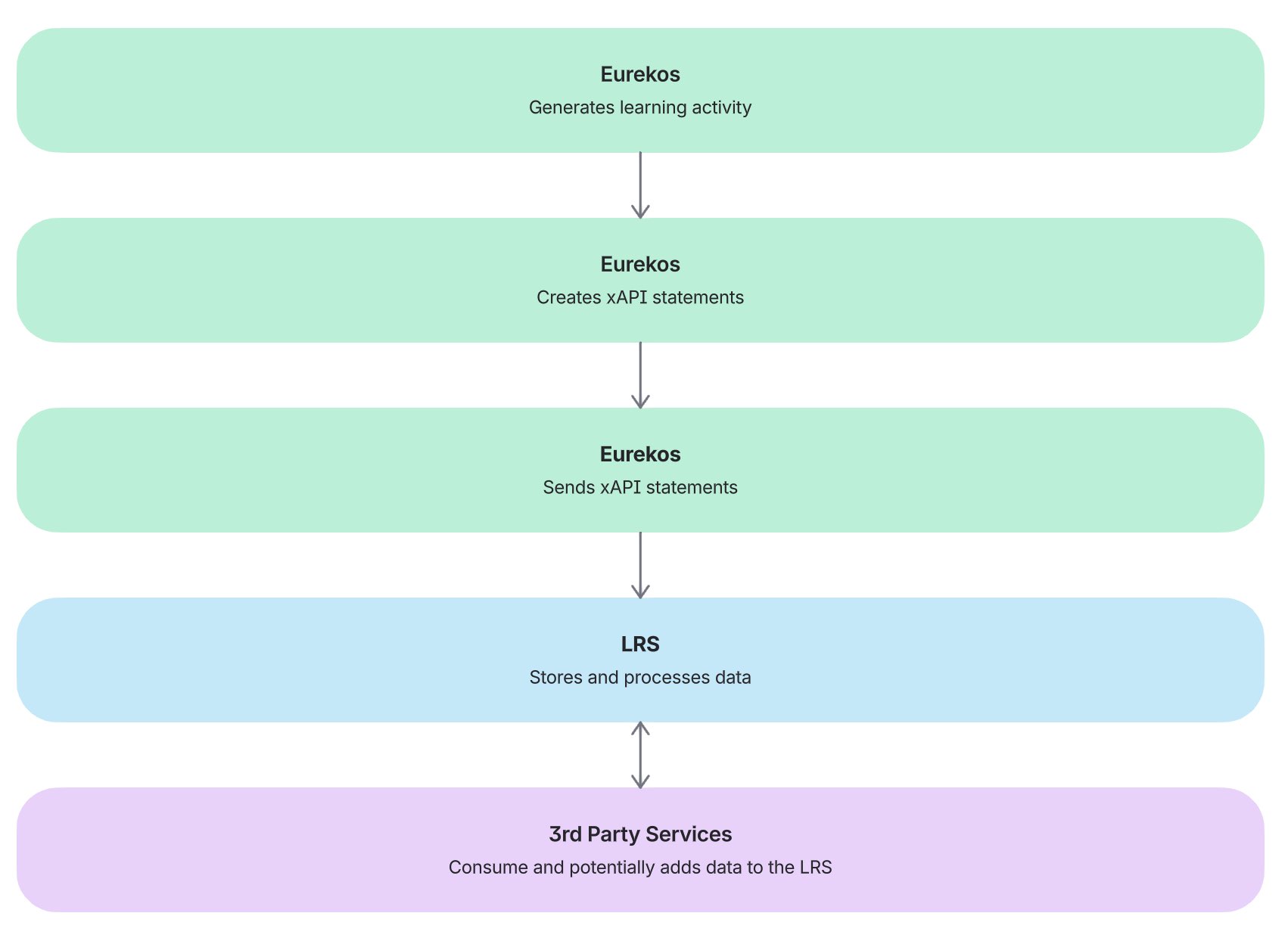

How the Integration Works
The integration operates as a data flow from Eurekos to the LRS.
1. Platform-Level Configuration
- LRS endpoint and credentials are configured
- Integration is enabled
2. Learning Activity Occurs in Eurekos → users interact with content that generates xAPI statements, such as:
- Course pages
- Videos
- Interactive content (e.g. H5P)
3. Data Is Sent to the LRS
- Eurekos transmits statements to the configured LRS
- Data is sent at regular intervals (asynchronous processing)
- Data Is Stored and Processed in the LRS → The LRS:
- Stores statements
- Makes data available for reporting
- Enables external analytics

What Data Is Sent
The following activities generate xAPI statements in Eurekos:
| Activity | Description |
|---|---|
| Viewing a course page | Tracks page access |
| Watching a video | Tracks engagement |
| Interacting with H5P content | Tracks interactions |
| 3rd party xAPI embedded or imported content | Tracks interactions |
These statements are sent to the configured LRS, where they are stored and made available for analysis. Certain learning tools, such as H5P, generate rich and detailed xAPI statements based on the specific interactions within each content type. The structure and scope of these statements are defined by the tool itself and can be explored in the official xAPI documentation provided by H5P.
For third-party or externally authored content, xAPI statements may be custom-designed within the respective authoring tools. These statements are transmitted through Eurekos but are defined and controlled outside of the platform, meaning their structure and level of detail depend on the originating tool rather than Eurekos.
Important Behavior
There are important technical considerations when working with xAPI:
- Progress is not continuously updated in real time
- A trigger (e.g. page reload or navigation) is required for updates to be sent
- Updates are processed in intervals and temporary delays may occur
External Content Behavior → If xAPI content links to another system:
- Data may be stored in that external system
- Eurekos may not receive or display that data
This depends on how the xAPI package is configured.
What the Integration Does NOT Do
It is important to clearly define scope:
| Does NOT Do | Explanation |
|---|---|
| Replace Eurekos reporting | Eurekos still handles core reporting |
| Guarantee external data return | Data flow is outbound |
| Track all external activity automatically | Depends on xAPI configuration |
| Visualize LRS data in Eurekos | Visualization happens in the LRS |
When to Use an LRS (Guidance)
Use an LRS when:
- You need cross-system tracking
- You use external xAPI content tools
- You require advanced analytics and e.g., business intelligence requirements (align with your LRS of choice)
| Recommendation | Why It Matters |
|---|---|
| Only implement LRS when required | Avoid unnecessary complexity |
| Align xAPI strategy with business goals | Ensure meaningful data collection |
| Validate xAPI content behavior | Prevent data fragmentation |
| Ensure LRS supports Eurekos statements | Required for compatibility |
| Test data flow thoroughly | Confirm statements are received correctly |
| Define reporting ownership | Decide whether Eurekos or LRS is primary |
| Monitor synchronization delays | Avoid confusion in reporting |
Compare Light LRS and an external LRS
By default, a platform with neither option enabled has no LRS connection. Do not infer that enabling native analytics also provisions an LRS.
| Route | What it provides | When it fits |
|---|---|---|
| Built-in Eurekos analytics | The native reports and supported learning evidence | Your requirement is already met by the platform’s reporting |
| Light LRS | In-platform xAPI statement storage without a built-in statement-viewing interface | An enabled starter route for supported xAPI content, with capacity monitored |
| External LRS | A third-party statement store and the provider’s analysis/export tools | Cross-system learning evidence, larger statement volume or dedicated xAPI analysis |
Light LRS activation is restricted to Eurekos administration and is available only when an external LRS has not previously been connected. Ask Eurekos to confirm suitability and activation; ordinary connection settings do not imply access to that switch.
Light LRS stops saving statements when the 500,000-statement limit is exceeded. Plan an external LRS before reaching that point. Connecting an external LRS migrates the statements already stored by Light LRS; verify the transferred evidence and subsequent statements in the destination. Migration cannot recover statements that were never saved after the limit was exceeded.
For example, a small xAPI pilot may begin with an enabled Light LRS, while an organization combining distributor certification evidence across systems may select an external LRS from the outset. The deciding factors are the required evidence, reporting tools and expected volume.

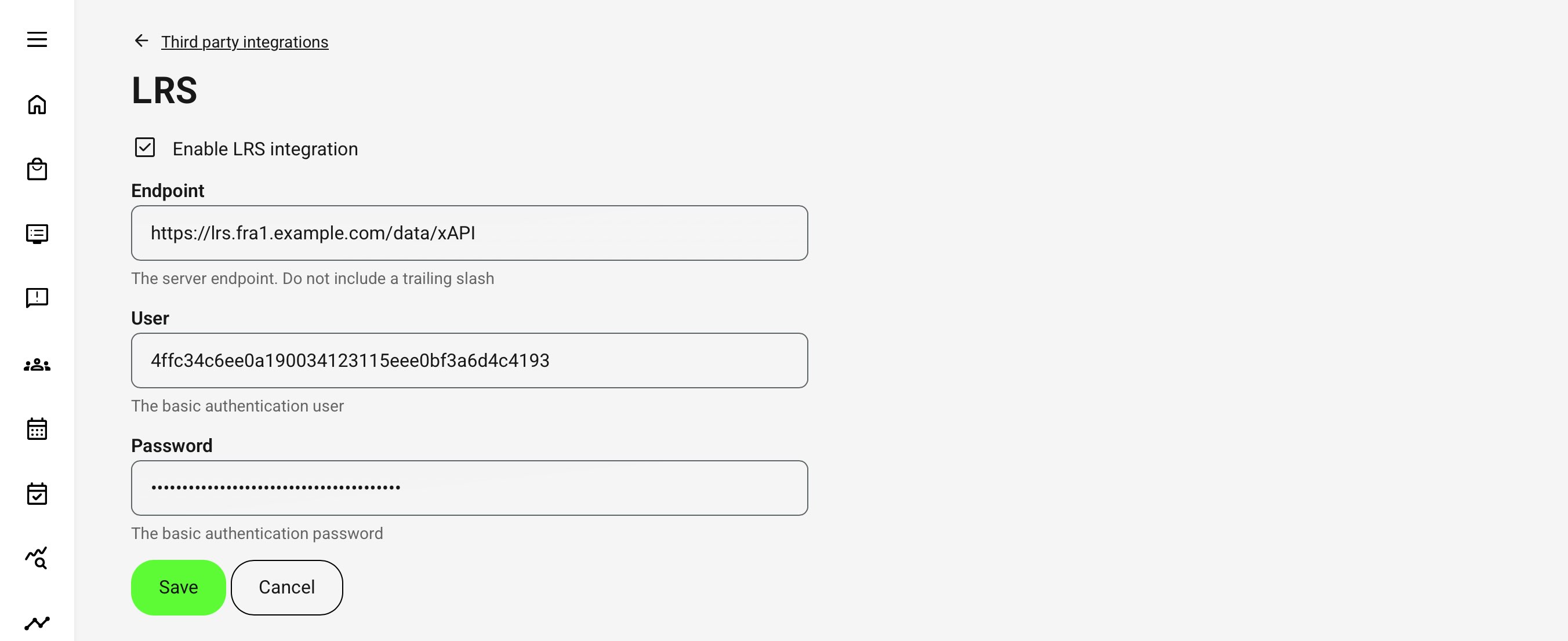

Configuration
To connect Eurekos with an external LRS, you must configure connection details provided by your LRS provider.
Step 1: Navigate to LRS Settings
Go to: Settings → Third Party Integrations → LRS.
Step 2: Enable LRS Integration
Enable LRS integration. This activates the configuration fields.
Step 3: Enter LRS Connection Details
You must provide the following:
| Field | Description |
|---|---|
| Endpoint | URL where xAPI statements are sent |
| User | Authentication identifier (API user/key) |
| Password | Authentication secret/token |
- Endpoint Format → The endpoint is typically a REST API endpoint following the xAPI specification.
- Use the server endpoint supplied for this Eurekos connection, without a trailing slash. Do not assume that a statements-resource URL copied from another application is the correct server endpoint.
- Authentication Model → The integration uses basic authentication:
- User = API key or client ID
- Password = secret or token
- These credentials are provided by your LRS system.

Step 4: Save the connection
Select Save after confirming the external LRS endpoint and basic-authentication credentials. Then verify the destination receives representative statements. A successful save does not prove that every content package produces the statement types your analysis requires.
Step 5: Verify the statement flow
Use a representative content package and a known learner. Inspect the resulting actor, content identifier, timestamp and relevant interaction or completion statements in the destination LRS. Coordinate that evidence with the provider’s reporting tools rather than assuming a native Eurekos chart displays raw LRS statements.
Verify ongoing operation
| Check | Expected result or evidence |
|---|---|
| No LRS configured | Native reports remain separate from xAPI storage availability |
| Representative xAPI package | Its expected statements arrive with the intended learner/content identifiers |
| Light LRS capacity | Volume is monitored before the 500,000-statement limit is exceeded |
| Migration to external LRS | Previously saved statements and subsequent new statements are present in the destination |
| Endpoint and credentials | The intended server endpoint has no trailing slash and authentication succeeds |
| Reporting ownership | The organization knows which native report or external LRS tool supplies each required result |
Troubleshooting
| Problem | What to check |
|---|---|
| xAPI content has no expected records | An LRS route is enabled and the package actually emits the relevant statements |
| Light LRS stops saving data | The statement limit and the plan for an external LRS |
| No raw statement visualization appears | Light LRS has no built-in statement-viewing tools; external reporting depends on the connected provider |
| External LRS receives no statements | Server endpoint format, current basic-authentication credentials, connectivity and background processing |
| External evidence differs from native completion | Package statement design and separate Eurekos progress/reporting rules |
FAQ
-
Do I need an LRS to use Eurekos?
No. Eurekos includes built-in tracking and reporting that covers most learning scenarios.
An LRS is only required if you:
- Use xAPI-based content from external tools
- Need cross-system tracking
- Require advanced analytics or external data processing beyond Eurekos reporting
-
What type of data does Eurekos send to an LRS?
Eurekos generates xAPI statements based on learning activity, such as:
- Viewing course pages
- Watching videos
- Interacting with H5P content
- Engaging with third-party xAPI content
These are sent as structured “Actor – Verb – Object” statements and stored in the LRS for analysis.
-
Is data sent to the LRS in real time?
No, not continuously in real time.
- Data is sent asynchronously in intervals
- A trigger (e.g. navigation or page reload) is typically required
- Short delays in data transmission can occur
This is expected behavior when working with xAPI and external LRS systems.
-
Does Eurekos receive data back from the LRS?
No.
The integration is one-way (Eurekos → LRS):
- Eurekos sends xAPI statements to the LRS
- Data is stored and analyzed externally
- Eurekos does not retrieve or visualize LRS data
Reporting and analysis must be done within the LRS or connected tools.
-
Will all learning activity automatically be tracked in the LRS?
Not necessarily.
Tracking depends on:
- How the content is implemented
- Whether it generates xAPI statements
- How external tools are configured
For example:
- Native Eurekos features generate defined statements
- Tools like H5P produce detailed xAPI data
- External content may store or control data outside Eurekos
This means tracking behavior can vary depending on the learning tools used.
-
Does Light LRS include tools for viewing and analyzing raw statements?
Use native Eurekos reporting for standard learning outcomes, or an external LRS with suitable analysis tools when you need to inspect raw xAPI statements.
-
What happens when Light LRS exceeds 500,000 statements?
The limit stops new statements from being saved. Plan an external LRS before the limit is exceeded. Statements already saved are migrated when an external LRS is connected; unsaved statements cannot be recovered by that migration.
